The 30-second precision washer for cell layouts
SPM Compact High-Pressure Component Washer
Manufacturer, supplier & exporter — Pune, Maharashtra, India.

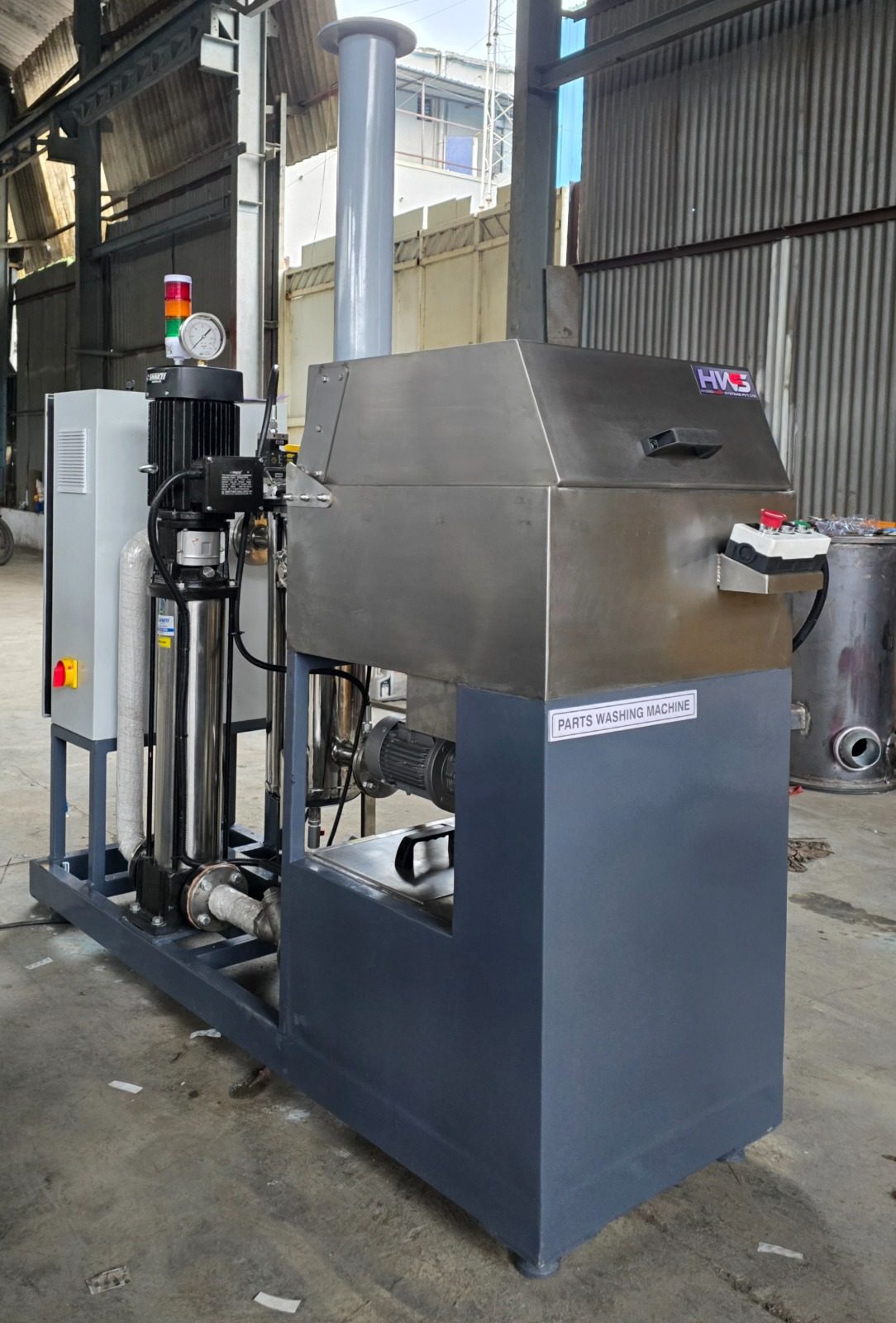

The Tekwash SPM Compact High-Pressure Washer is a special-purpose cleaning machine engineered for precision components such as throttle bodies, valve bodies and small housings. In a footprint of just 0.6 × 1.5 m it delivers a dedicated 15 bar spray wash zone, a compressed-air blow-off zone and a 4-stage filtration system — all in a 30-second cycle per component.
Complete stainless steel 304 construction, 360° component rotation, nylon-coated contact areas and individual fixtures ensure Millipore-verified results: 1.29 mg and 1.15 mg residue with no particles above 300 µm on throttle bodies. The machine fits directly into a machining cell and requires no skilled operator.
Key Features
- Compact footprint — 0.6 × 1.5 m approx.
- Complete S.S. 304 construction
- 30 sec cycle time per component
- Dedicated washing & airblow zones
- 4-stage filtration system
- Less running cost & low maintenance
- Fits cell layout — no skilled operator required
Typical Applications
FAQ
SPM Compact High-Pressure Component Washer — frequently asked questions
On throttle bodies the Tekwash SPM washer achieved Millipore residue values of 1.29 mg and 1.15 mg with particle size below 300 µm — well within precision cleaning targets of < 2 mg / 1000 cm².
The machine completes wash and air blow-off in approximately 30 seconds per component, making it suitable for single-piece flow in machining cells.
The SPM compact washer measures approximately 0.6 × 1.5 m and is built entirely in stainless steel 304 with a 4-stage filtration system for long bath life.
